ZW3D vs Solidworks Assembly Lesson 22
What is the advantage designing with shapes?
Using shapes eliminates the need to create a sketch and extrude. The above part has 14 shapes and 2 sketches. This is a simple part and we have eliminated 14 constrained sketches and 14 extrusions. Imagine a complex part. Give this concept a try today.
Design of Water Control Valve in Solidworks
ZW3D vs Solidworks
While creating 3D models from drawing is the very best way to learn 3D CAD and maybe some design techniques is does not expose the designer to the design flexibility necessary in product design. IronCAD is all top down due to the single model environment. Creating mating parts is a cruise. But modeling is just one aspect of this well designed productive 3D CAD system.
I like to show step by step lessons So you can see the commands being used.
I always create the part before I watch the Video, so as to not taint my process. Of course, there are a multitude of ways to create a model. There is no right way, just more productive ways. From what I have seen from these very complicated processes done by the Solidworks Presenters, it is not just limited by the 3D CAD system.

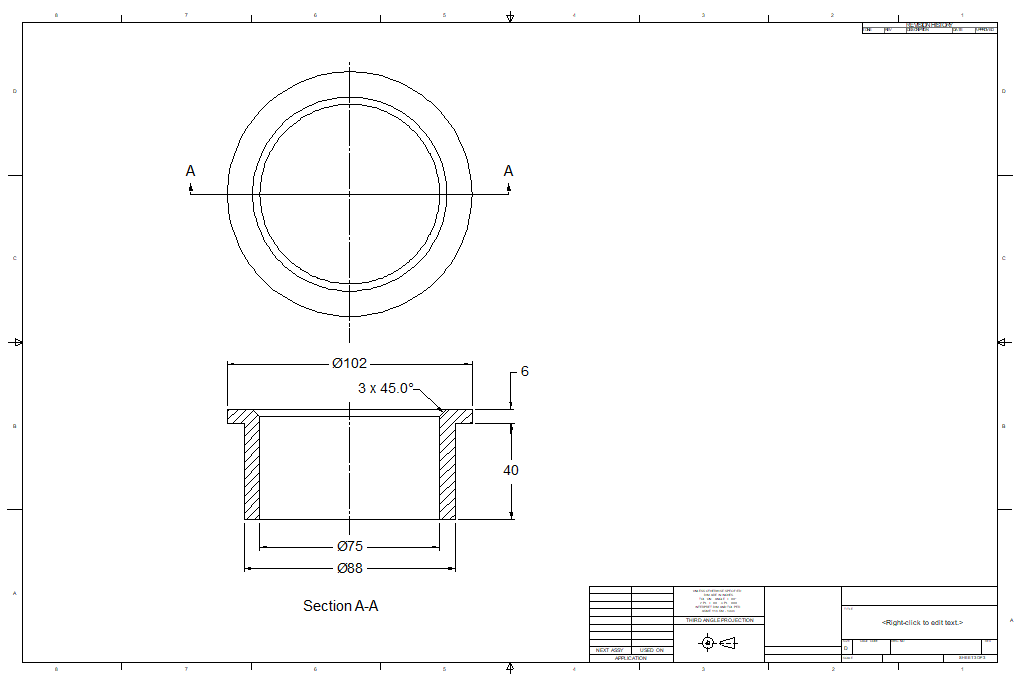

Here is the drawing if you would like to follow along.
Download ZW3D and follow along
Please review Lesson 1, we show how to set up ZW3D the Multi-Object environment for an assembly.

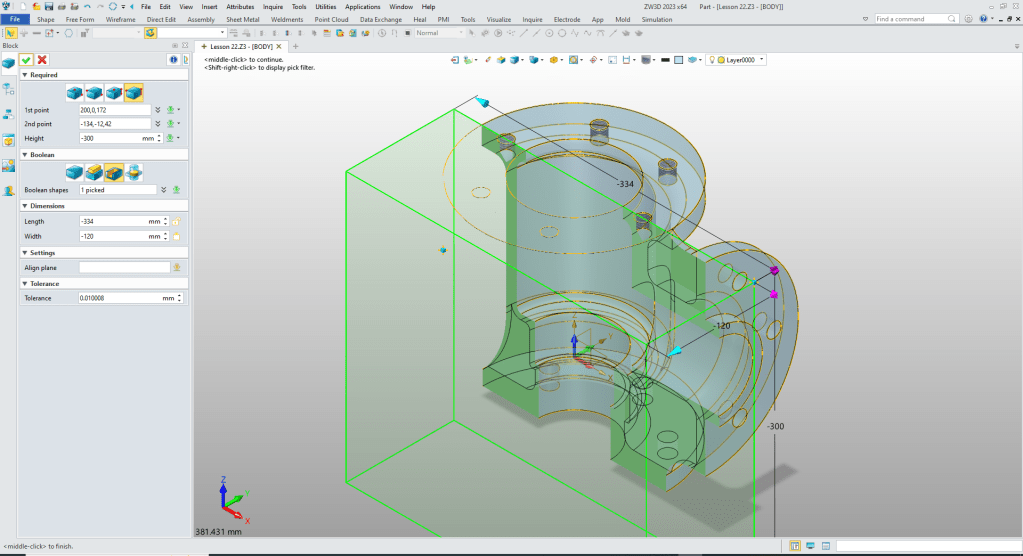

We are doing effective top down or in-context design. This is an option in the ZW3D design process. We activate the body and insert a block, locate and size and set to remove.
We select the assembly mode.

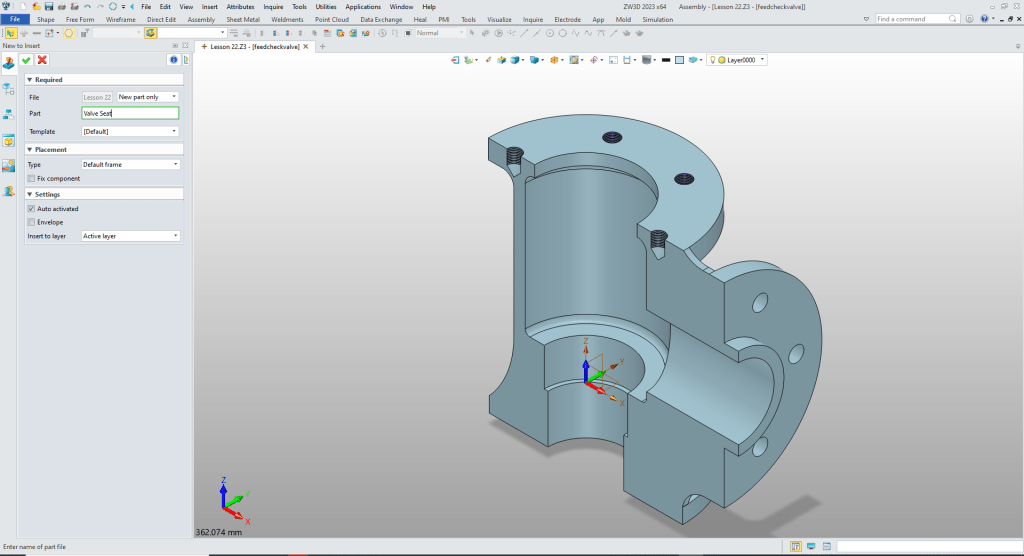

We select the “New To Insert” option and create the “Valve Seat” component.

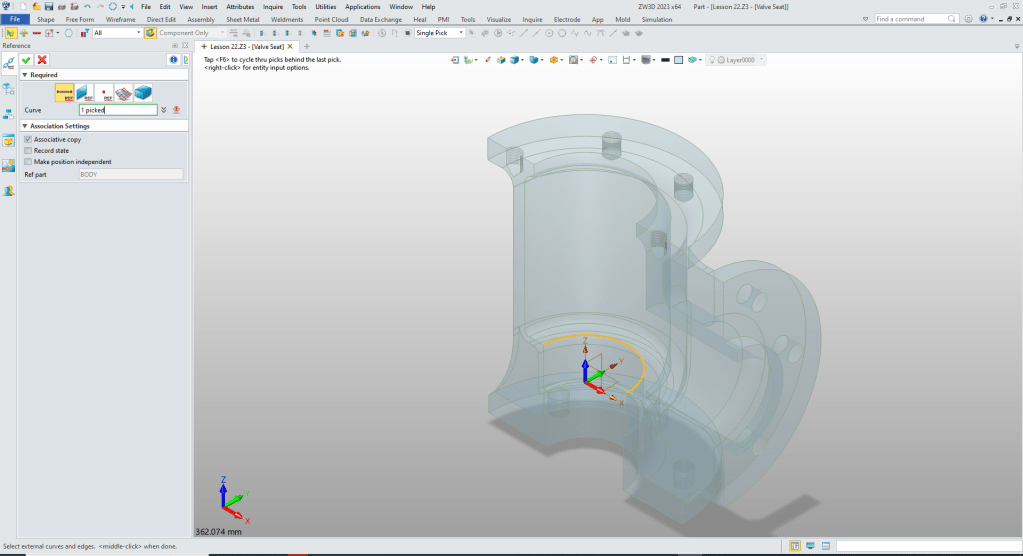

It automatically activated the new component. We go to the assembly edit mode and create a reference on the mating face.

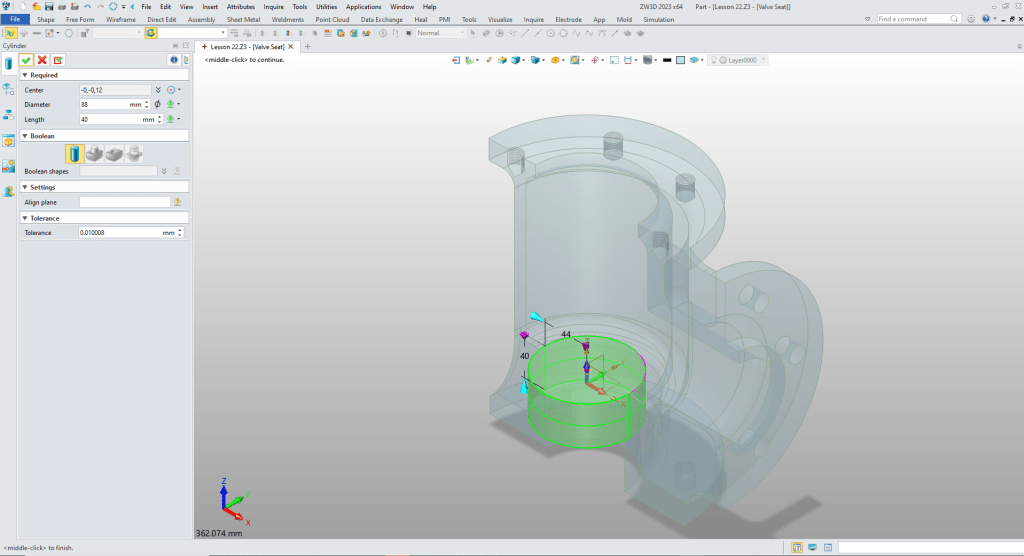

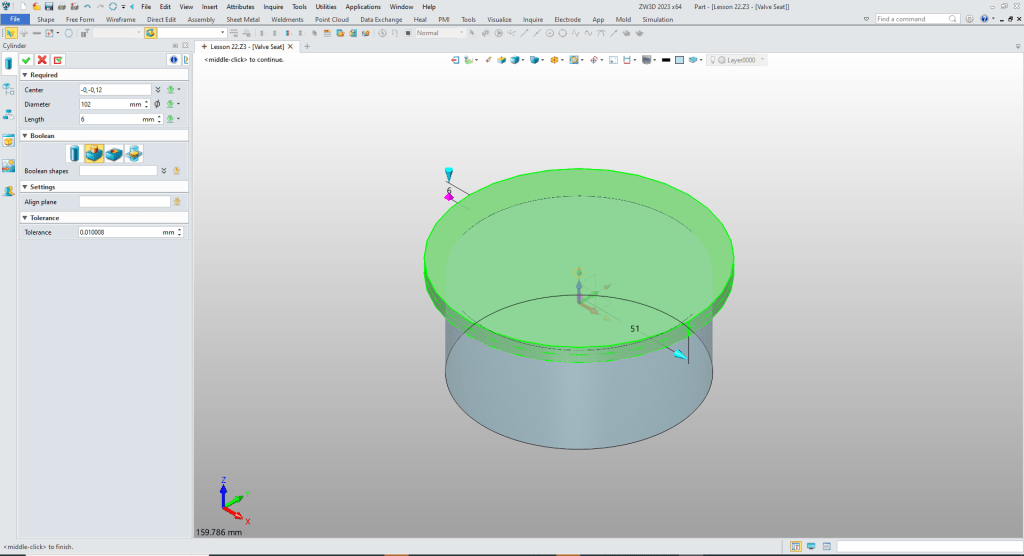

We insert a cylinder using the “Center of Curvature” of the reference entity to locate it then size it.
The body was only needed to locate this feature. We open the “Valve Seat” and will fix the body later. We blank the reference arc. We insert at cylinder at the center of the existing cylinder and set it to add.

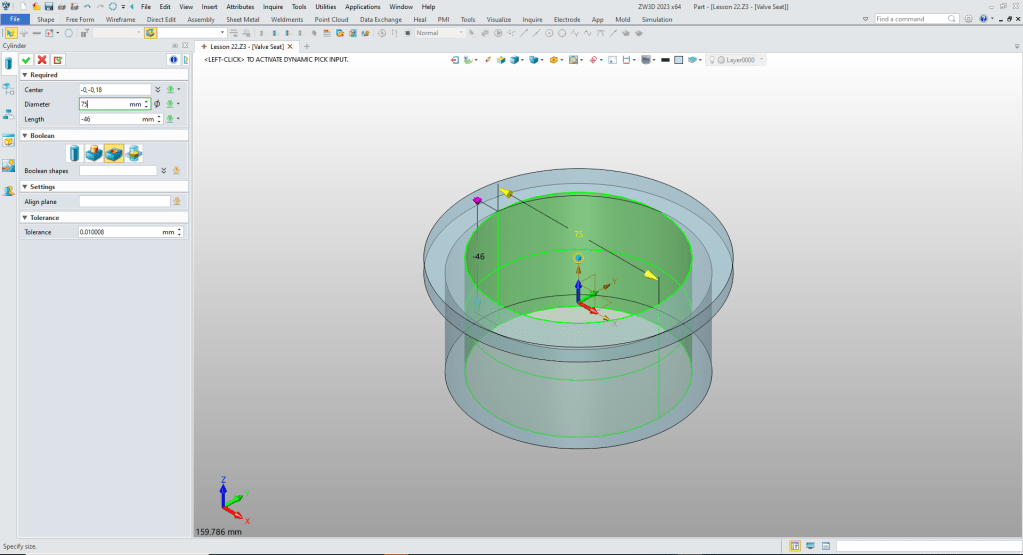

We insert a cylinder, size it and set it to remover.

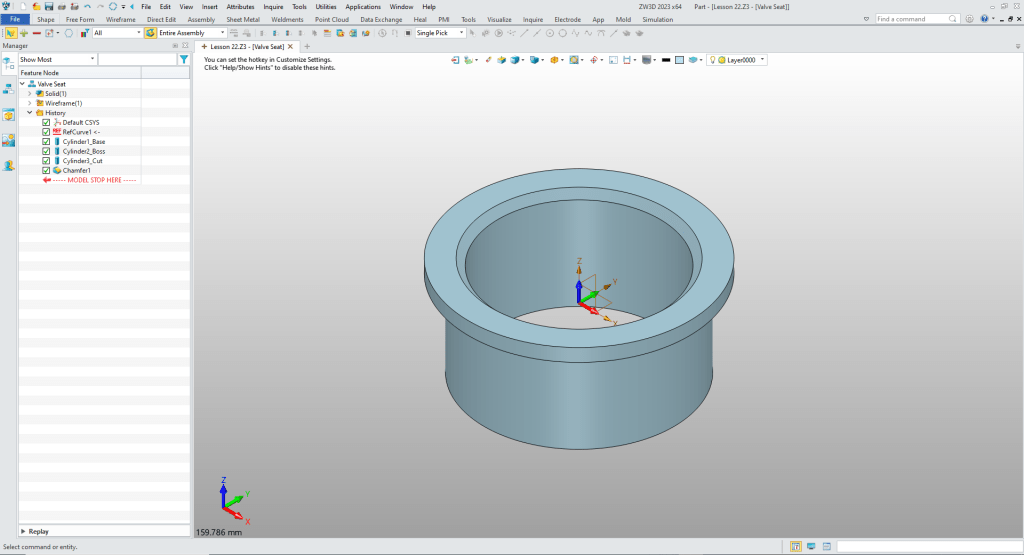

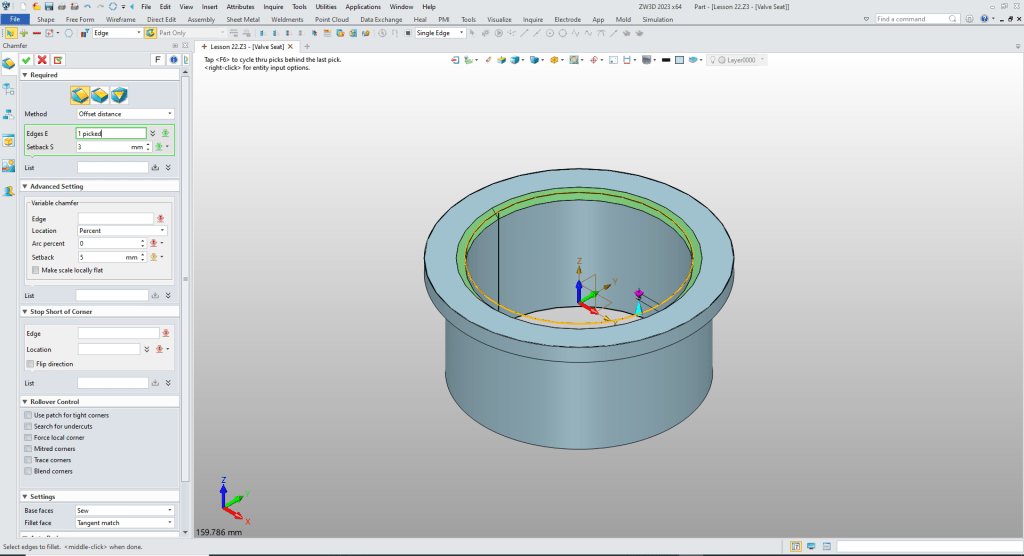

We add the chamfer.
We are done with the part.
