ZW3D vs Solid Edge Lesson 2

3D Modeling Techniques
ZW3D vs Solid Edge Lesson 2
Designing with Shapes!
No Sketching Please!


I saw the following video challenge on linkedin and thought I would give it a try. I actually did it before I watched the video, so I did it a bit differently. This will give you an idea how different and flexible ZW3D is compared to the conventional Solid Edge.

Solid Edge Synchronous Technology Tutorial for Beginners – 1

While creating 3D models from drawing is the very best way to learn 3D CAD and maybe some design techniques is does not expose the designer to the design flexibility necessary in product design. ZW3D can be set up one part per file or multi-object which offers incredibly flexible top down design. Creating mating parts is a cruise. But modeling is just one aspect of a well designed productive 3D CAD system.

ZW3D is one the few 3D CAD systems that has integrated drawings, so you can do complete projects or sub-assemblies in one file.

I would do a video, but I really am not good at it. So I will show you step by step. I will try and get IronCAD support to create one. They are very good.

I always create the part before I watch the video, so as to not taint my process. Of course, there are a multitude of ways to create a model. There is no right way, just more productive ways. From what I have seen from these very complicated processes done by the Solid Edge Presenters, it is not just limited by the 3D CAD system.

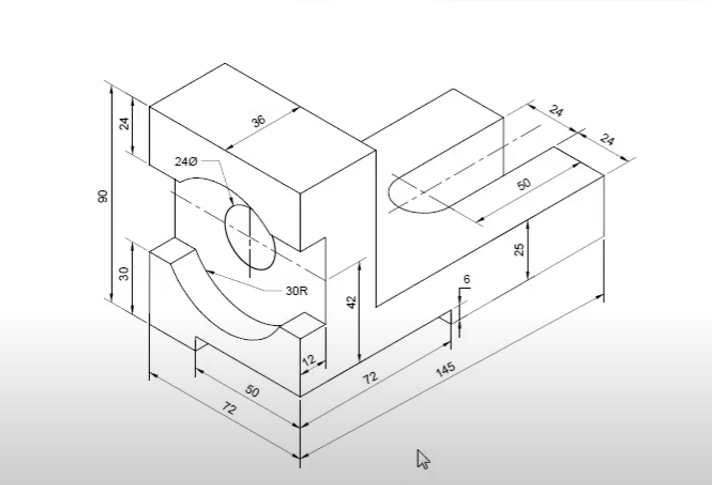

Here is the drawing if you would like to follow along.

We will create this model using primitive shapes only.

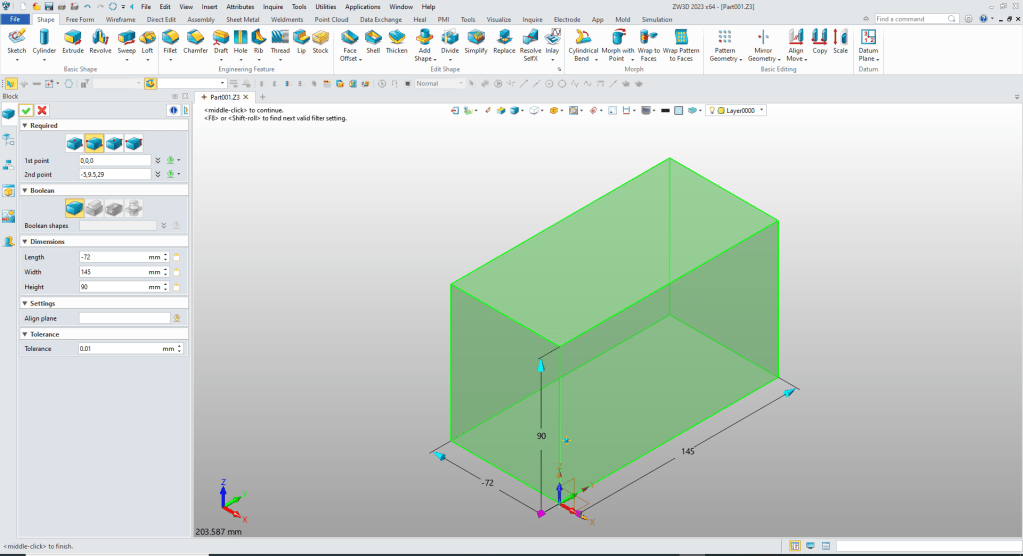

I insert a block and size it. 145X72X90

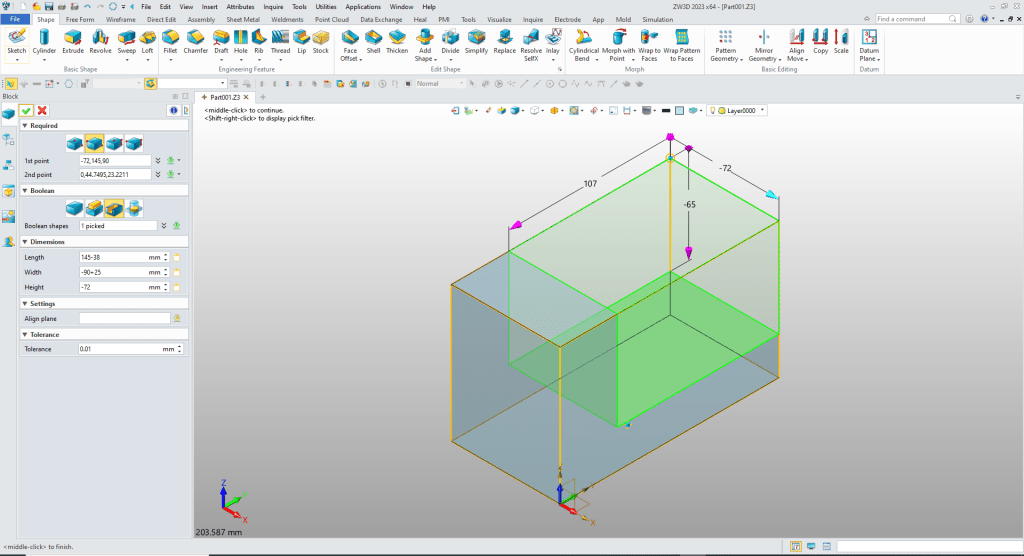

I insert another block on top of the existing block locate and size it an set it to remove.

We insert a cylinder on the front face, you have an option to set the alignment plane. We just located it with the options and size it and set to remove.

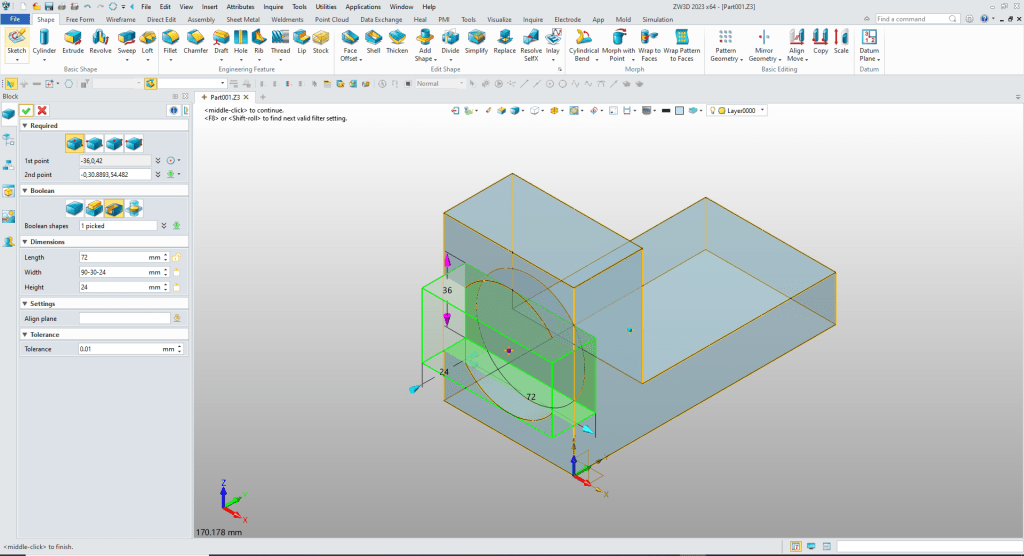

We insert a block using the center option. It automatically sets the width, we size the others two features realizing the symmetrical definition so we have to set the depth twice the size to 24mm and set to remove.

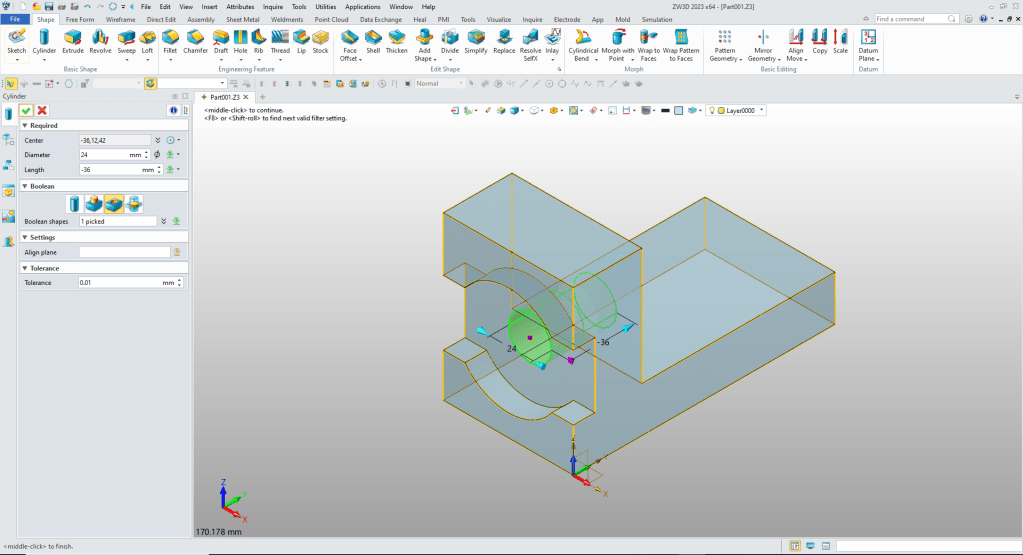

We insert a cylinder at the center of the existing cylinder set the diameter and depth and set to remove.

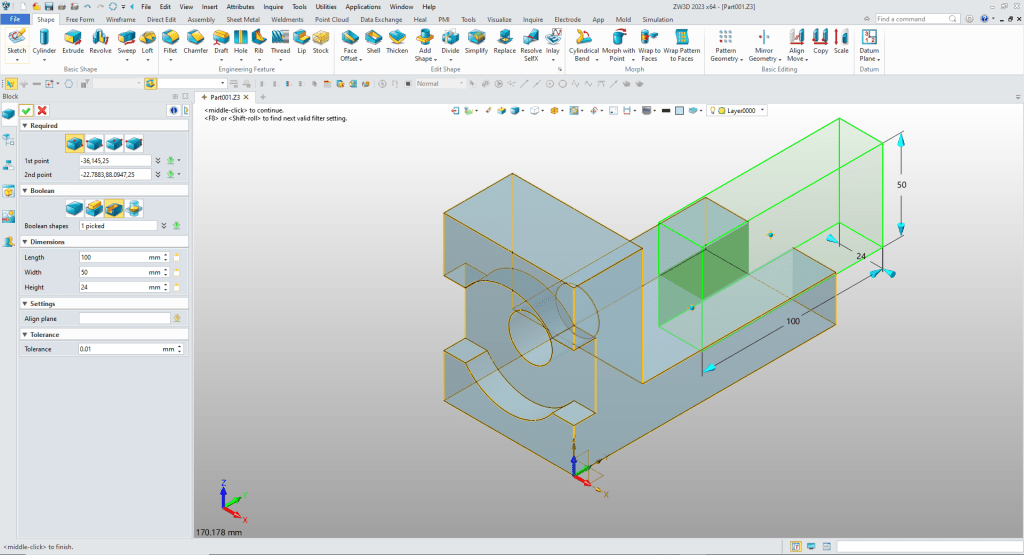

We insert a block again we use the center option. We set the length and depth to twice the size since it is based on the middle of the block and set to remove. This is the fastest option and requires very little thinking. LOL

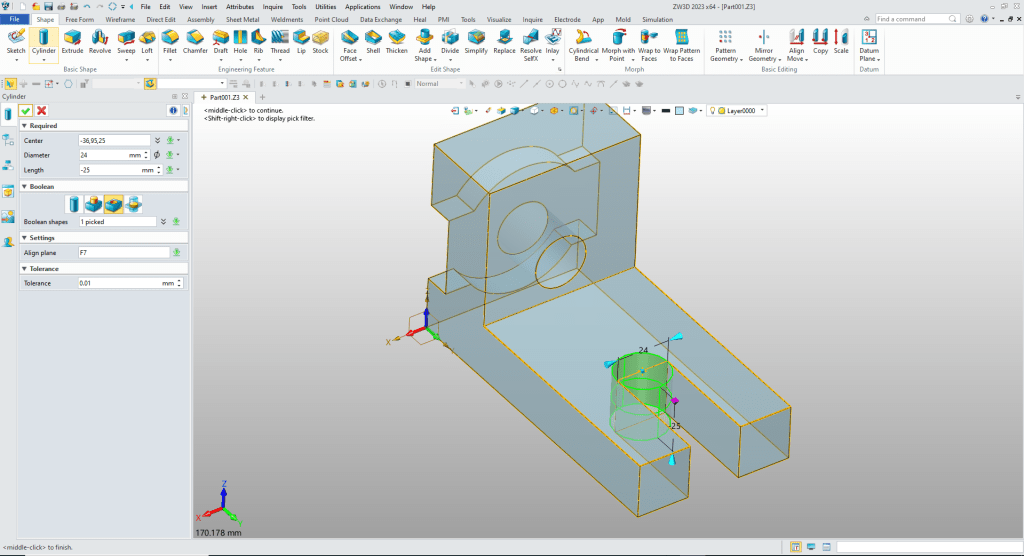

We insert a cylinder on the mid-point of the relative edge, it is automatically sized and set to remove.

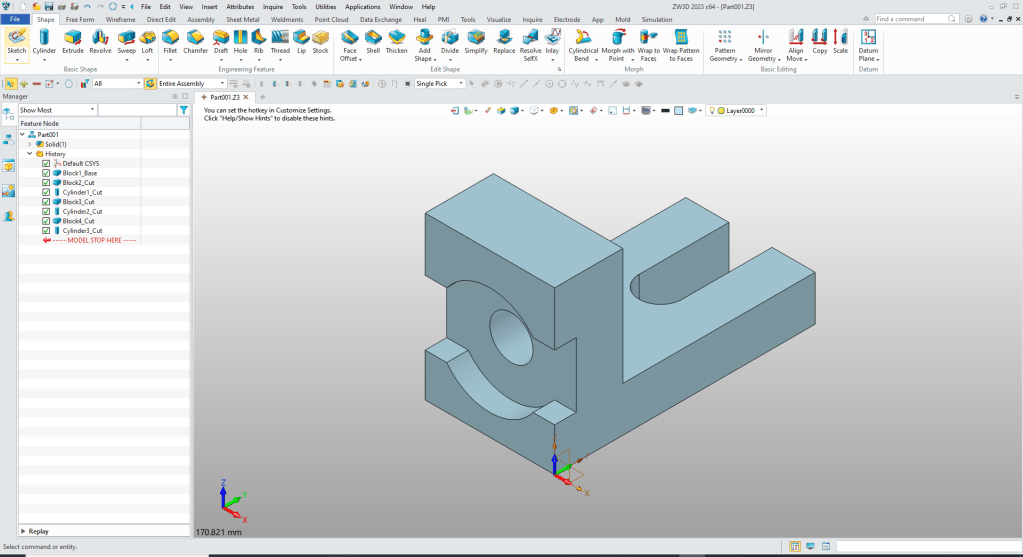

Here is the finished part. Remember no sketches. So simple as compared to NX sketching.


It is very important that you look into how you or your engineers are creating the parts. Streamline Sketching and Feature Based Modeling is easy to learn and implement. It, alone, will increase productivity 10X. Now, ZW3D with its add primitive shapes can increase your productivity another 5X or more with changes! Again, time is money in engineering.

More on Streamline Sketching and Feature Based Modeling.


Give me a call if you have any questions. I can set up a skype or gotomeeting to show this part or answer any of your questions on the operation of IronCAD. It truly is the very best conceptual 3D CAD system.


If you are interested in adding professional hybrid modeling capabilities or looking for a new solution to increase your productivity, take some time to download a fully functional 30 day evaluation and play with these packages. Feel free to give me a call if you have any questions or would like an on-line presentation.
