What is the advantage designing with shapes?
Using shapes eliminates the need to create a sketch and extrude. The above part has 14 shapes and 2 sketches. This is a simple part and we have eliminated 14 constrained sketches and 14 extrusions. Imagine a complex part. Give this concept a try today.
Design of Water Control Valve in Solidworks
ZW3D vs Solidworks
While creating 3D models from drawing is the very best way to learn 3D CAD and maybe some design techniques is does not expose the designer to the design flexibility necessary in product design. IronCAD is all top down due to the single model environment. Creating mating parts is a cruise. But modeling is just one aspect of this well designed productive 3D CAD system.
I like to show step by step lessons So you can see the commands being used.
I always create the part before I watch the Video, so as to not taint my process. Of course, there are a multitude of ways to create a model. There is no right way, just more productive ways. From what I have seen from these very complicated processes done by the Solidworks Presenters, it is not just limited by the 3D CAD system.

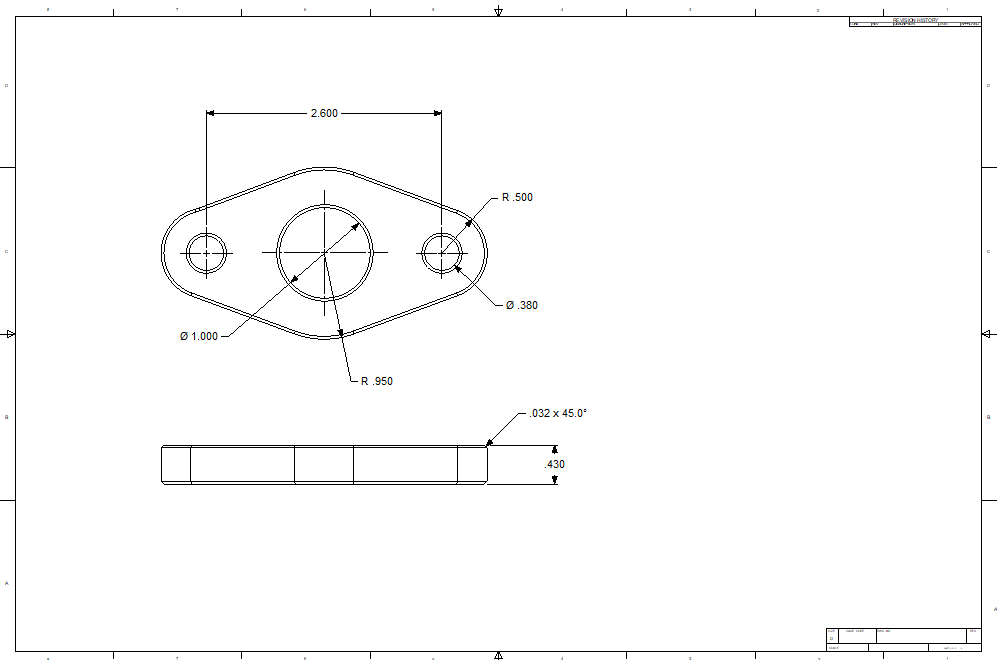

Here is the drawing if you would like to follow along.
Download ZW3D and follow along
We use the “New to Insert” command under the the Control Valve Assembly and name the part Flange. We edit or activate the part. This how we design top down.

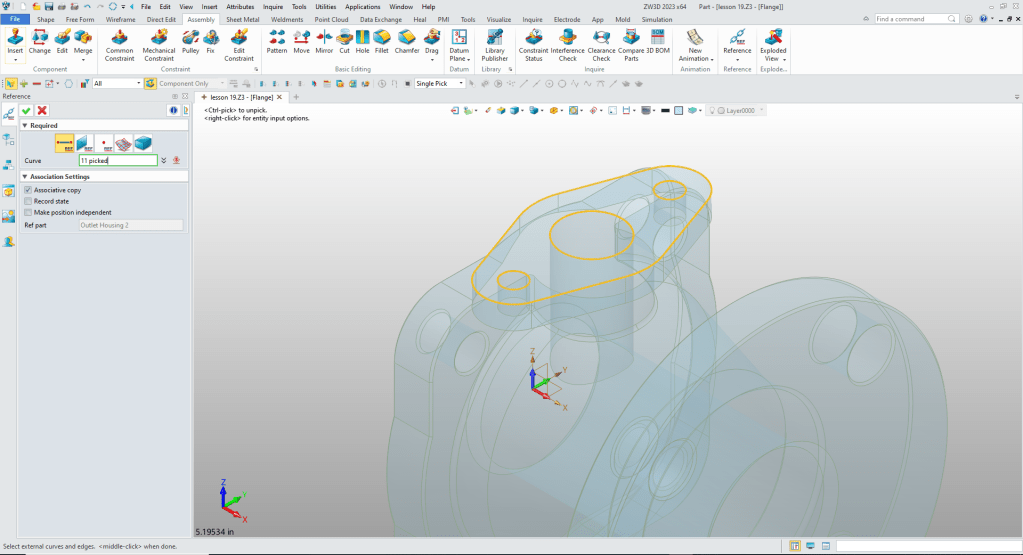

We will only show the mating part and create reference entities from the mating edges.
We select okay and we got to “Extrude” window the entities and set the depth.

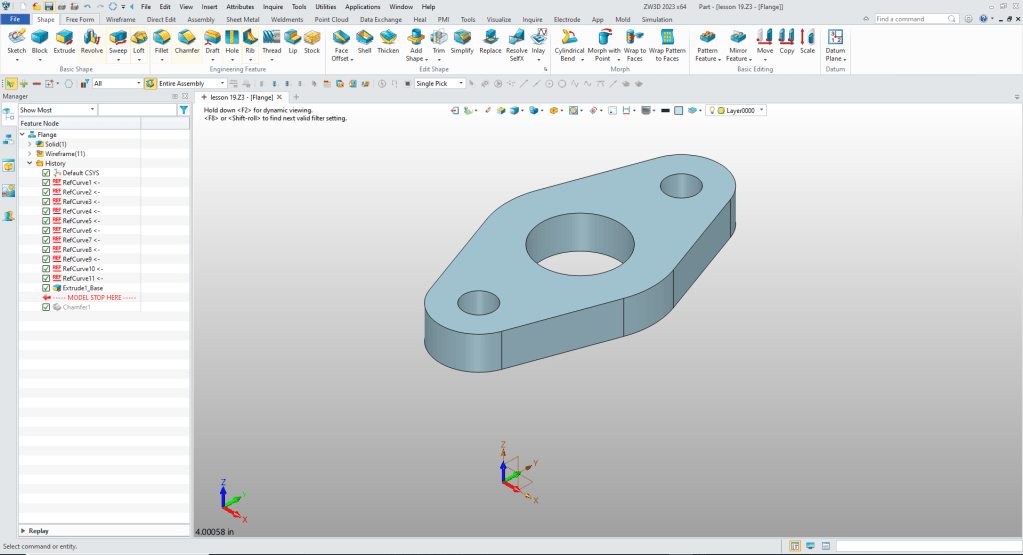

We are done with the part. We will open the part. You can see by the location of the axis indicator the the part is in aircraft position, the coordinates are related to the assembly.

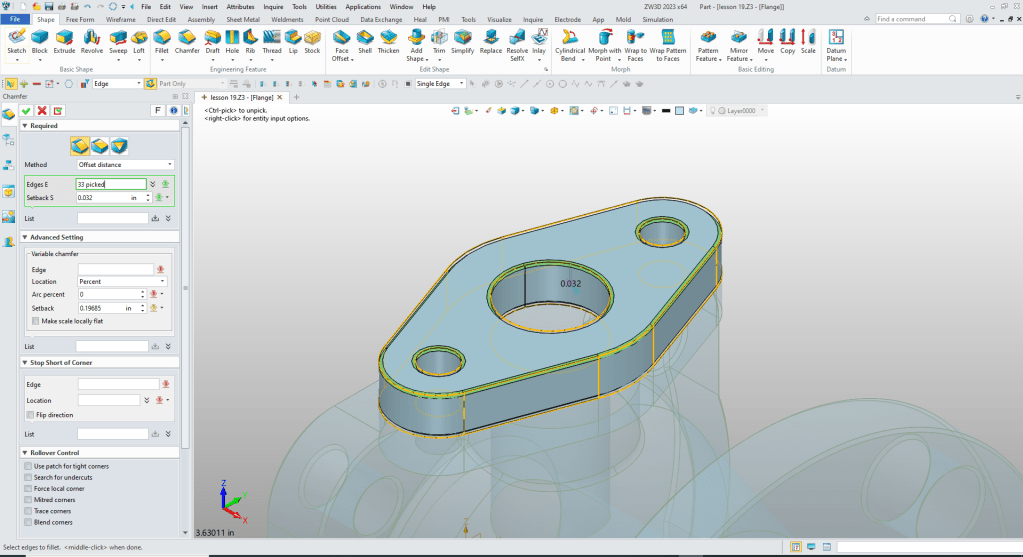

We now create the chamfers by windowing the part.
